Κωδικός προϊόντος:

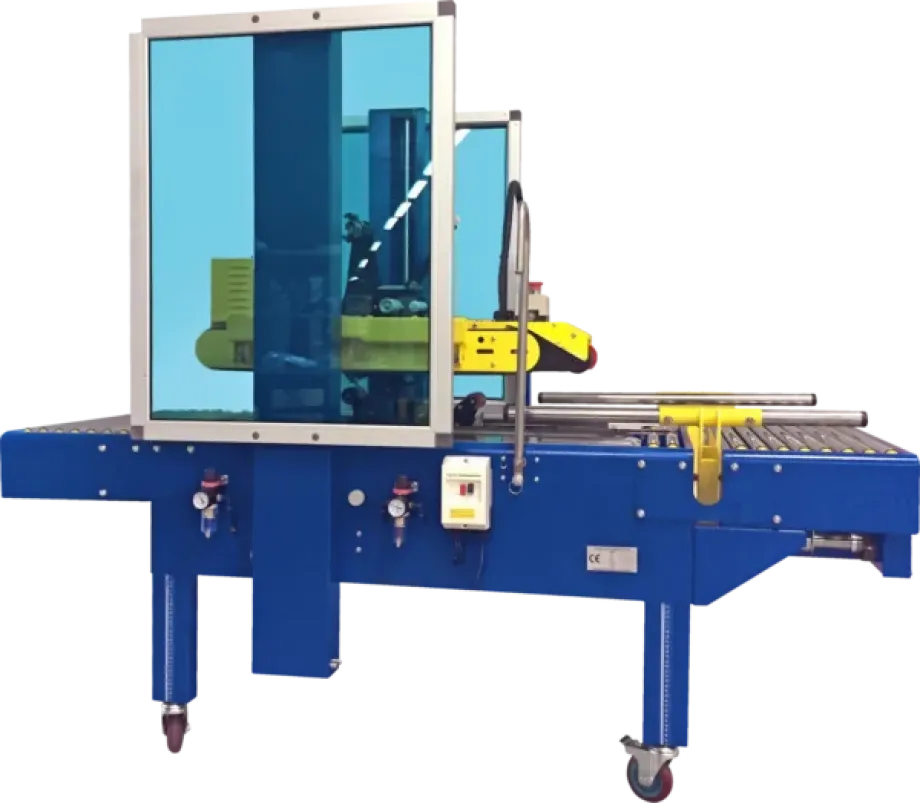

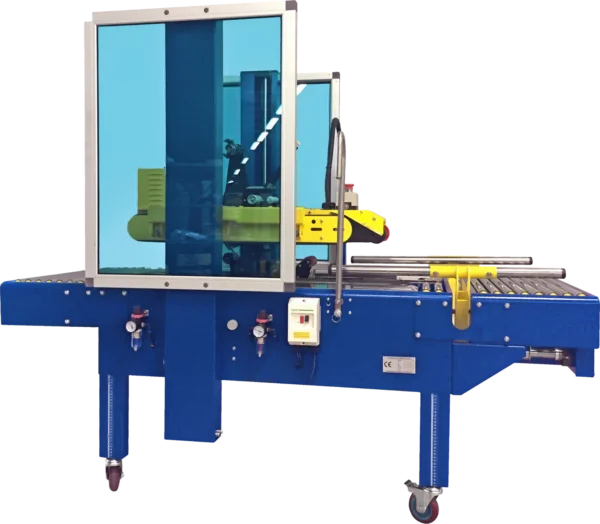

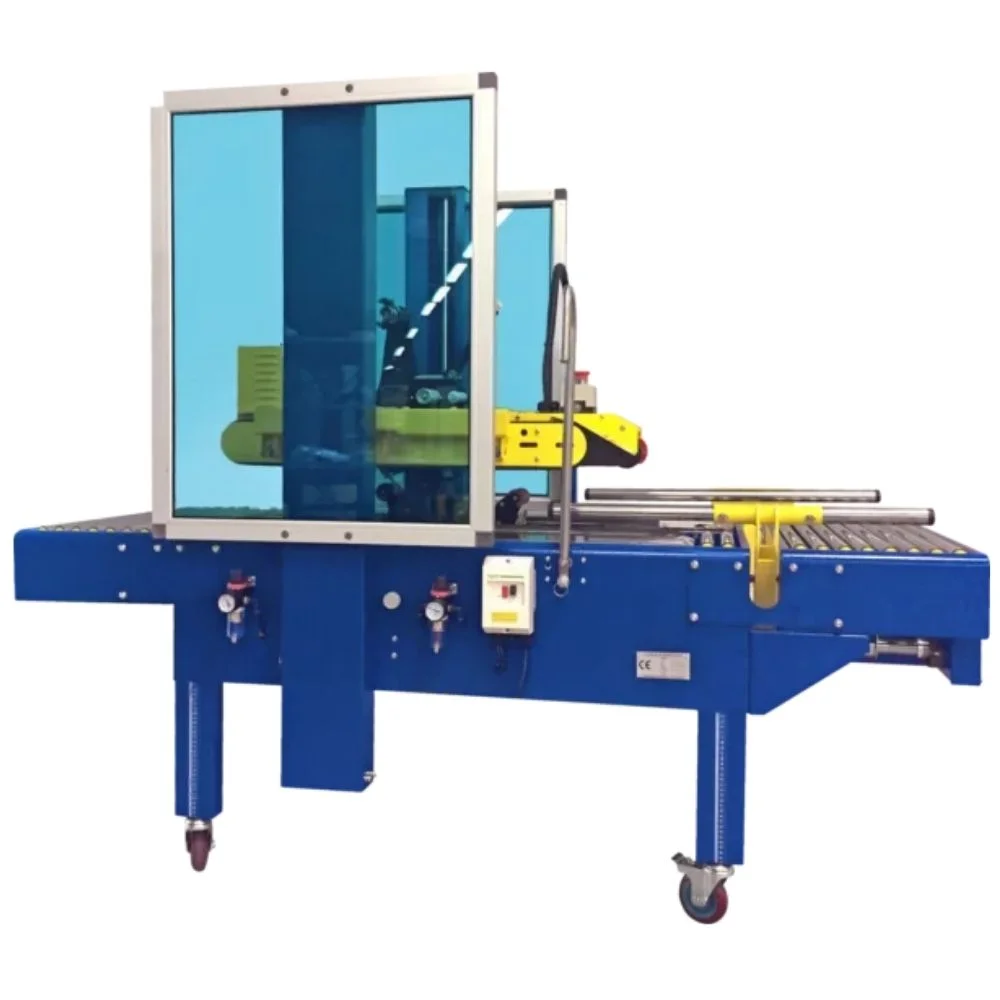

NASTROPACK NP 03 EV
The self-conforming/random-size machines with lateral driving system ideal for every type of carton boxes. The most suitable solution to close automatically different size of carton boxes. Once the carton is filled and positioned on the machine, after a simple and light pushing the height of the taping unit and the width of the side drive belts automatically adapt to the dimensions of the box itself allowing the carton box to be driven through the machine for the simultaneous application of the self-adhesive tape on the top and on the bottom side. The robust, elegant and “fresh” structure of the machine, together with its characteristics and technical solutions make this machine very appreciated by the wide number of word wide Customers that have selected it for the packing operations.
Πληροφορίες Μηχανήματος
SPECIFICATIONS – NASTROPACK NP 03 EV
- Simultaneous application of the self-adhesive tape on bottom and on the top side of the carton during its passage through the machine with possibility to adjust the front and the rear leg length
- Working tension: single-phase, 220 volts
- Compressed air consumption: depending from the specifications and the dimensions of the carton boxes (indicatively 3,5 – 4 nl/cycle) at a pressure of 6 bar
- Side safety panels in transparent execution, protecting the area close to the movement of the upper sealing and driving unit
- Min length of the cartons: 150 mm
- Max length of the cartons: inf ∞
- Min width of the cartons: 170 mm
- Max width of the cartons: 600 mm
- Min height of the cartons: 140 mm
- Max height of the cartons: 630 mm
notes: Technical data subject to variations without prior notice
The output depends on the operator and the type of the package
