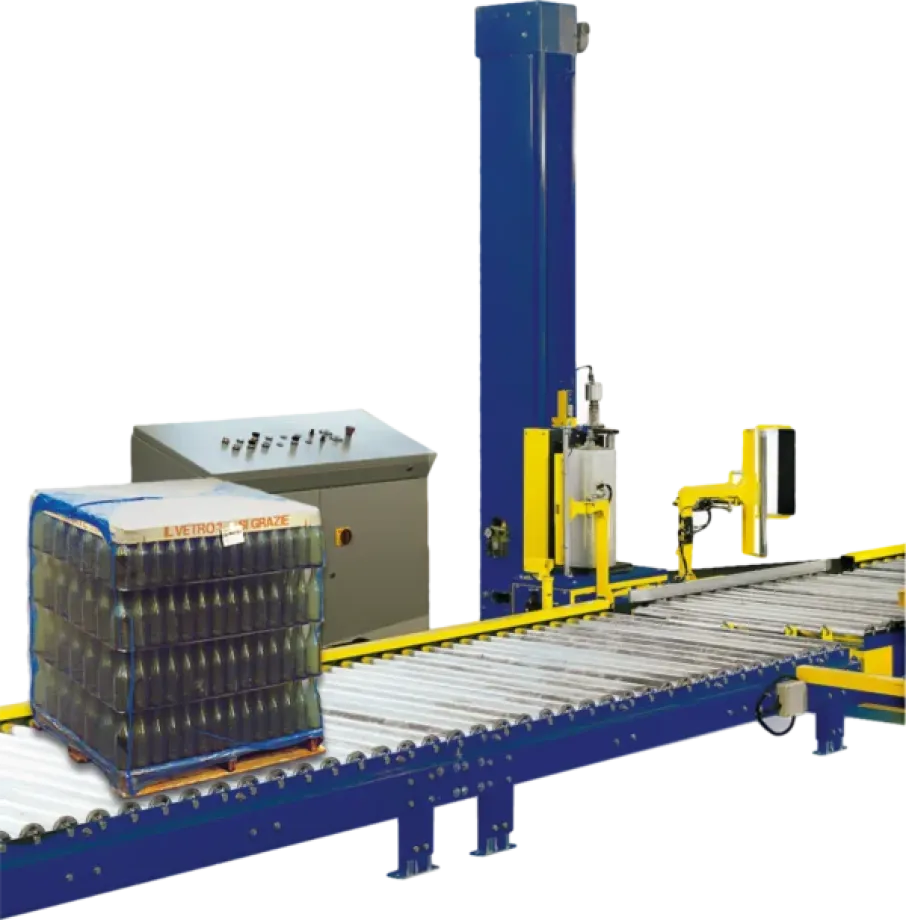

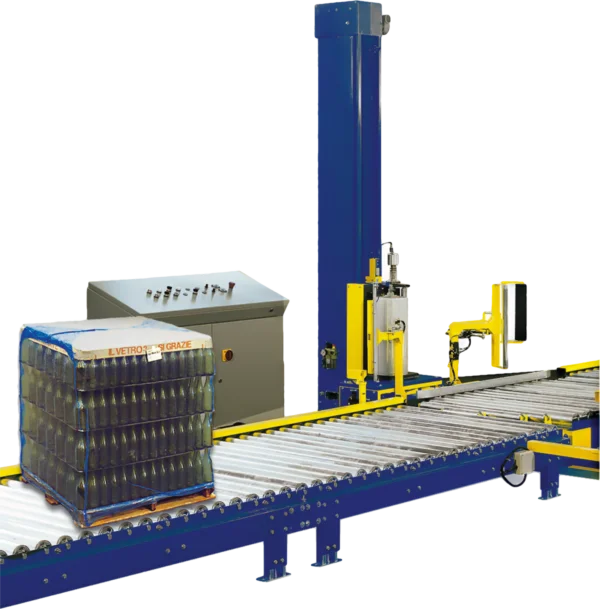

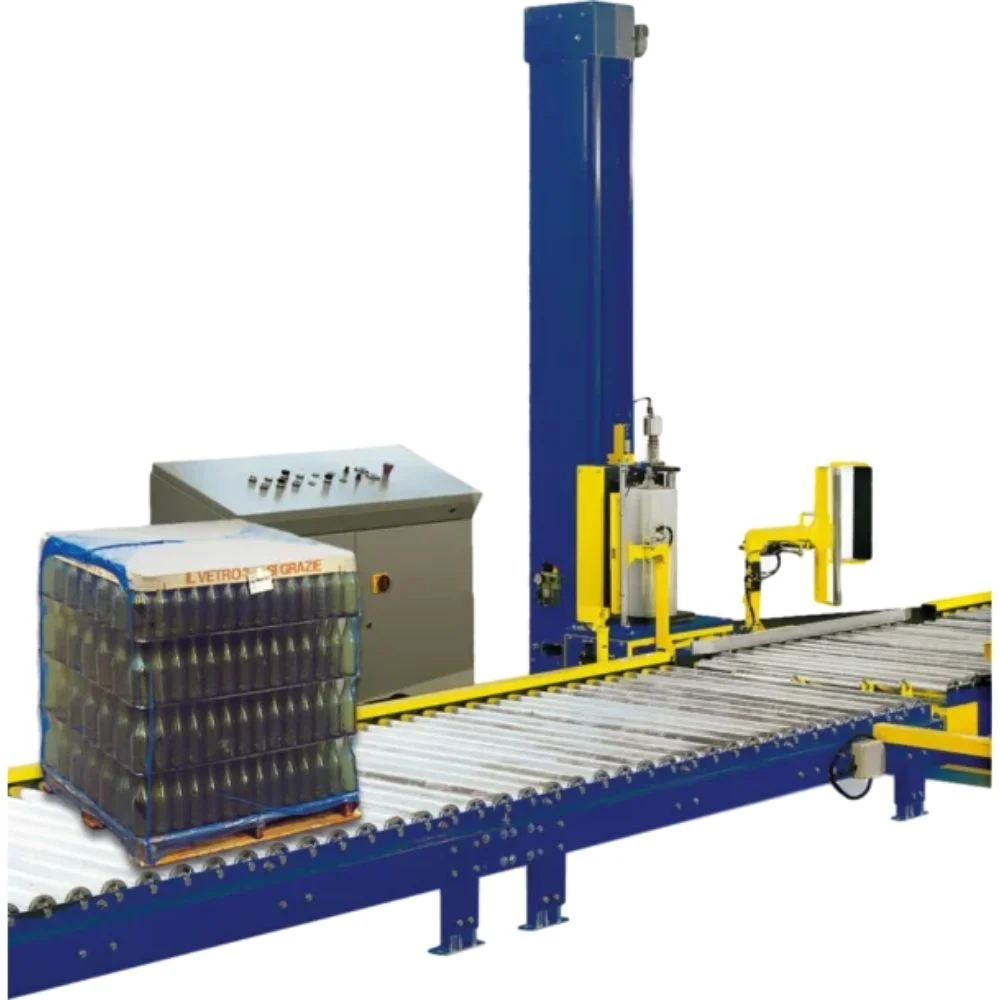

ECOSPIR LINE
FULLY AUTOMATIC PALLET-WRAPPING LINES
Wide range of fully-automatic pallet-wrapping lines, from the simplest (infeed conveyor – pallet-wrapper – outfeed conveyor) up to the most complete and accessorized ones, both standardarized or customized.
Machines manufactured according to CE rules
Πληροφορίες Μηχανήματος
LAYOUT OF A STANDARDIZED PALLET-WRAPPING LINE
TECHNICAL FEATURES OF A STANDARDIZED PALLET-WRAPPING LINE
Power supply 220/380 V – 3 Ph + N
Maximum pallet dimensions 800×1200 mm / 1000×1200 mm
Maximum pallet height 1800 mm
Maximum pallet weight 1200 kgs
Motorised chain conveyor speed 10 m/min.
Motorised roller conveyor speed 10 m/min.
Output 20/50 paletts/hour
MAIN CHARACTERISTICS
- Automatic pallet-wrapping equipped with top-pressing unit.
- Device integrated in the turntable and synchronized to transfer a pallet from a chain to a roller conveyor.
- Power pre-stretch system granting a film economy up to 70%.
- Main control box.
- Automatic top covering machine (on request antistatic unit to reduce electrostatic charges).
- Motorized chain conveyor system for pallet transfer.
- Motorized roller conveyor system for pallet transfer.
- Grilled fence for safety and protection.
Machine manufactured according to CEE rules
