Μηχανήματα Περιτύλιξης Παλετών/Τυλιχτικές
Κωδικός προϊόντος:

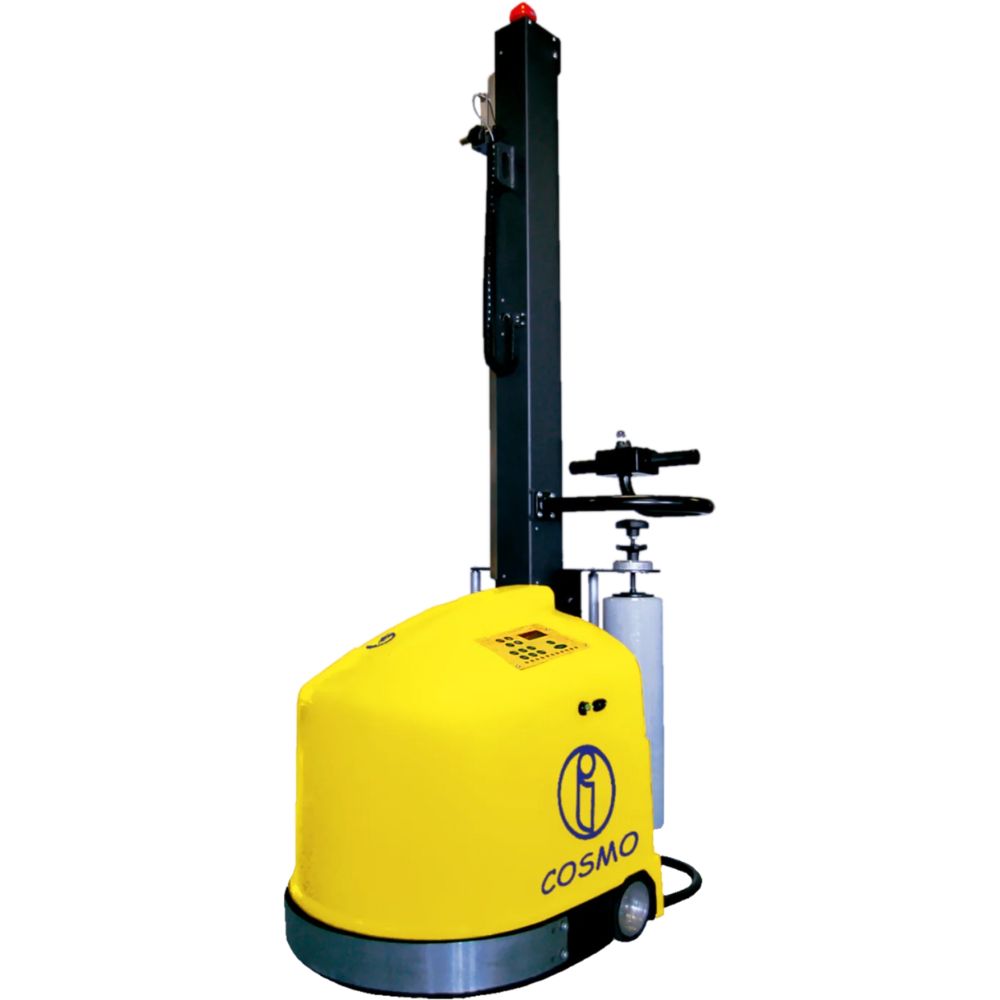

ROBOT COSMO
THE PALLET WRAPPING ROBOT AHEAD OF THE FUTURE THAT EVERY PALLET WAS WAITING FOR!
THE ONLY ROBOT IN THE WORLD THAT CIRCLES THE LOAD WITHOUT DIRECT CONTACT
Through a patented working system, COSMO is the only pallet
wrapping robot circling the load without a direct contact. It is the only
suitable solution for loads with overhanging parts, with an irregular
base (due to either to the pallet conformation or the characteristics
of the products loaded on it) which may block the detecting wheel in
the “traditional” robotic pallet wrapper.
Πληροφορίες Μηχανήματος
GREAT PERFORMANCES:
- High-technology with a very simple and friendly usage
- Possibility to set up to 6 working cycles with separate parameters
- Machine propelled by sealed maintenance-free batteries which do not require any filling or to move the robot in dedicated loading area
- Exclusive and modern design
- Fixed mast for wrapping loads with a maximal height of 2000 mm
- Regulation of the film tension through a mechanic brake
- Film carriage with chain transmission
- The machine works with standard stretch-film rolls (thickness 19-40 , width 500 mm)
- Easy and fast regulation of the optical sensor for the highest wrapping point
- Easy driving and moving for transferring the machine to the next wrapping point (push for an easy forward/backward and turning left/right of the machine, plus the film carriage moving upward/downward)
- Acoustic signal at the starting of the working cycles
TECHNICAL SPECIFICATIONS
- Machine dimensions 1000 x 600 x 2100 (H) mm
- Machine weight 230 kg. (indicative / indicativo)
- Power supply 110 / 240 V – 1 Ph
- Maximal wrapping height 2000 mm
- Minimal pallet dimension 500 x 500 x500 (H) mm
- Maximal pallet dimension without limits
- Shipping dimensions 800 x 1200 x 2300 (H) mm
- Gross shipping weight 260 kg. (indicative)
- Machine powered by 12 V dry / maintenance free batteries
- Traction system (with 2 motors, 24 cc)
- Film carriage with chain transmission (with motor, 24 V cc)
- Film carriage moving speed adjustable
