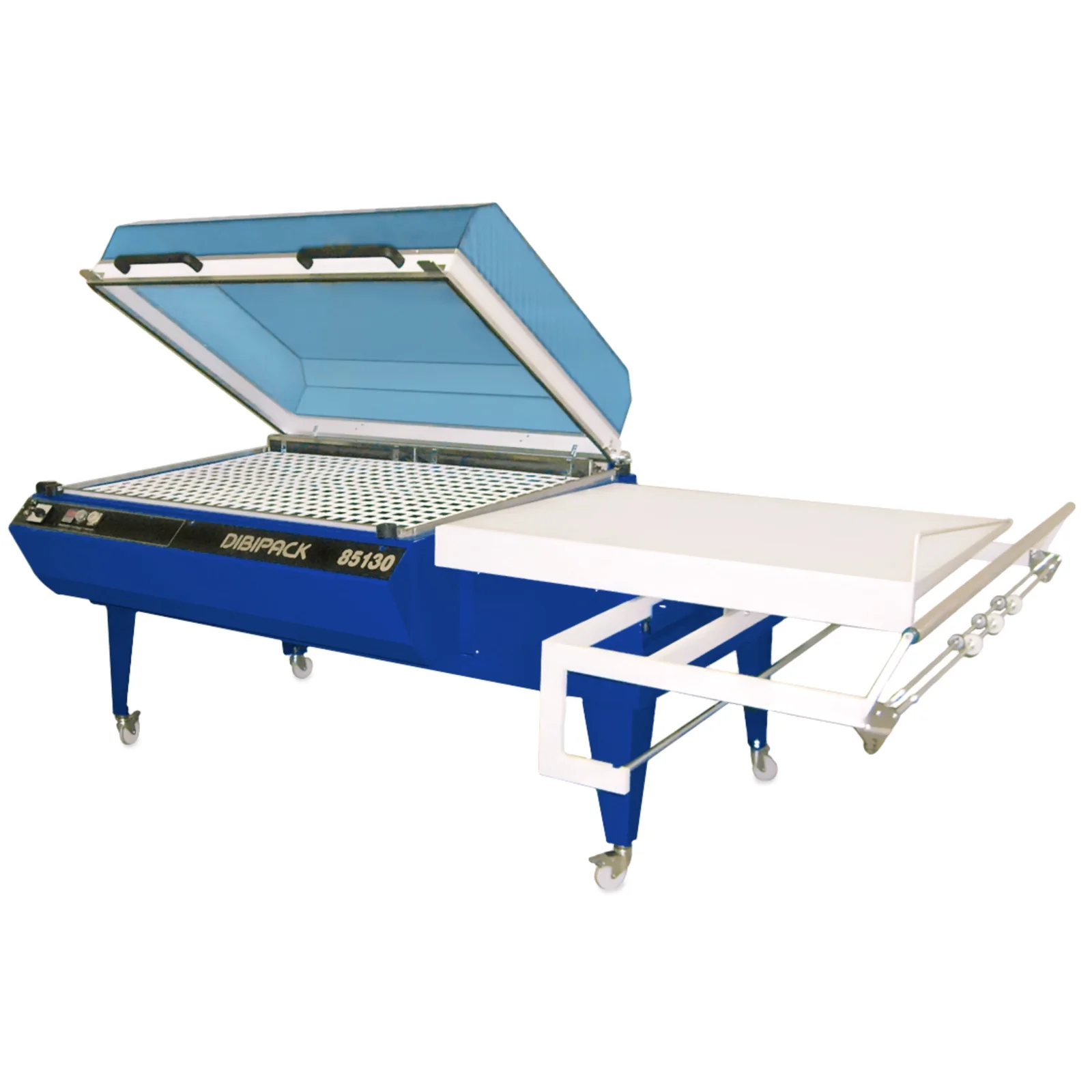

DIBIPACK 85130
THE “GIANT” OF SHRINK WRAPPERS
Here is the Dibipack 85130 model, a new-entry in Italdibipack range of EXTRA-LARGE “one-step®” systems, theDibipack BIG, the largest models of the Dibipack line, conceived and designed in order to be the winning answer to the increasing demand of a large-size machine with great capacity and high performances. Ideal to wrap products of large dimensions, with wide surface, such as frames, pictures, panels a.s.o.
Πληροφορίες Μηχανήματος
An excellent result achieved by Italdibipack R&D team that has gathered all the market requests and transformed them into a winning solution, this new “giant” will make the Dibipack 75125 and Dibipack 85150 models be “retired” thanks to its new dimensions of the sealing bars (850 x 1300 mm) that are able to hold a wider dimensional range of the product.
This new model has the same specifications as the shrink-wrapping machines of the Dibipack line too, but with some peculiarities: such as two hold-down solenoids that keep the hood closed during the working cycle, two fans that grant a better circulation of warm air during shrinking.
The machine works with thermo-sealing and shrinkable films such as PVC (BLUE FILM) or polyolefin films (GREEN FILM – GOLDEN FILM)
Machine made according to CE rules.
SPECIFICATIONS DIBIPACK 85130
- Power supply: 400 V – 3 Ph + N
- Maximum power required: 8 KW
- Overall machine dimensions L x W x H: 2700 x 1500 x 1400(H) mm
- Working plate height (on stand): 900 mm
- Machine weight: 300 kg
- Sealing area W x L: 850 x 1300 mm
- Maximum product height: 250 mm by request
- Impulse sealing system: Bottom blade
- Maximum roll dimensions DIA x W: 250 x 1200 mm
- Output: 4 – 6 pcs/min
notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
