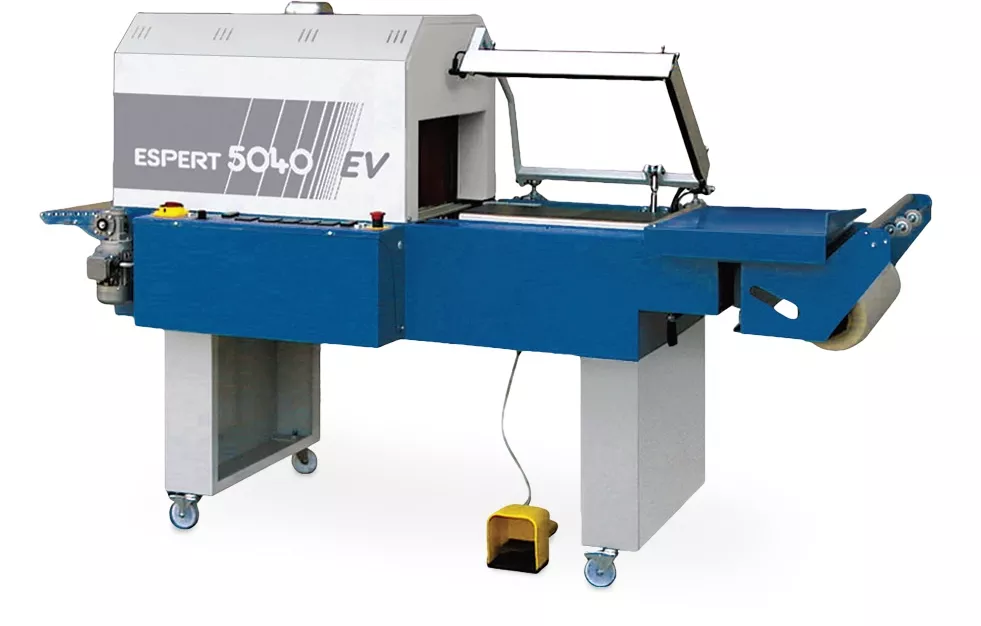

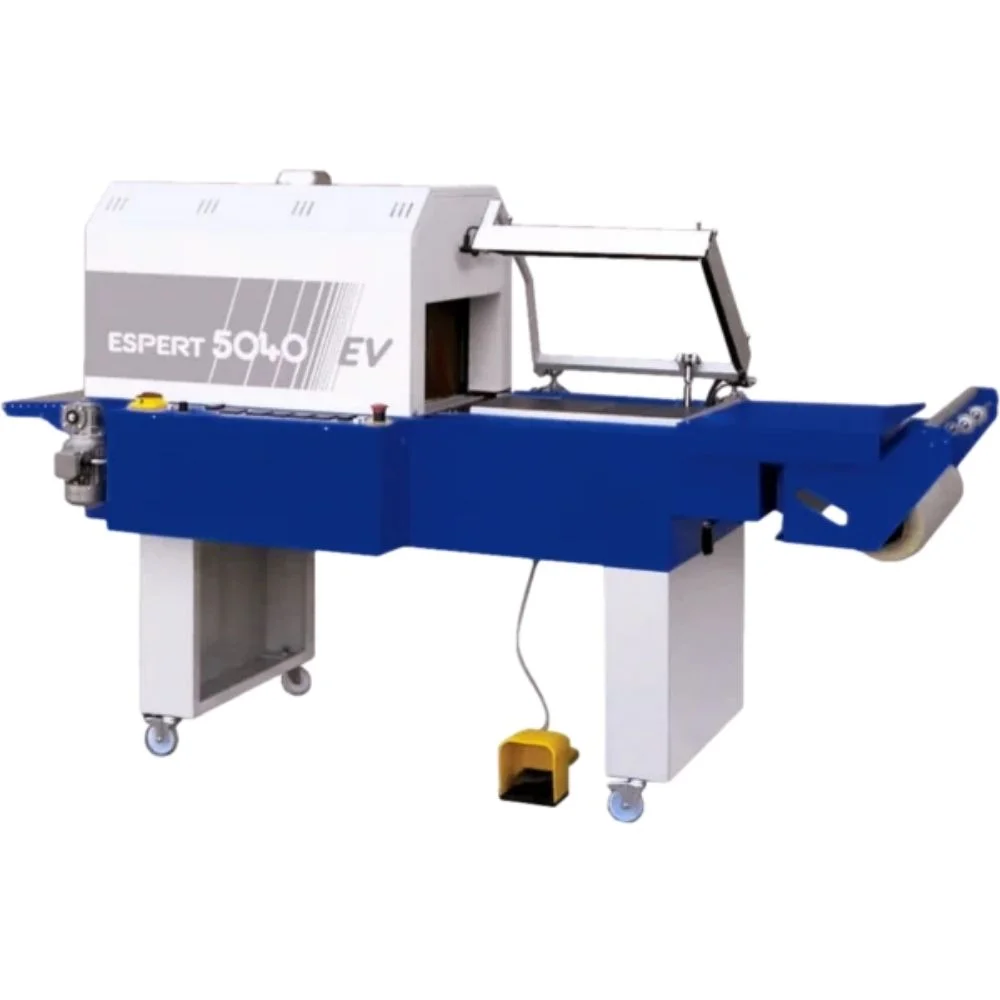

ESPERT 5040 EV

• An alternative choice to “one-step®” systems in order to increase production though beeing very easy to use.
• Innovative design
• High quality standards
• High productions outputs
• Fully automatic working cycle
• Pneumatical working: a pneumatic cylinder closes the sealing-bars, and when the sealing frame opens the conveyor belt starts operating and transfers the product into the shrink tunnel for being shrinked.
• Opening and closing of the sealing-bars (with a pedal or automatically), sealing-time and conveyor belt moving time controlled by a timers.
• Two independent conveyor belts in the sealing area and in the shrinking tunnel.
• The height of the sealing bar is adjustable according to the product size height.
• An efficient safety system guarantees the operator’s hands security, according to the CE regulations
• The shrink tunnel, integrated in the machine structure, is equipped with a rolling-rods conveyor belt with adjustable speed by inverter.
• The tunnel itself has shutters for air regulation in order to obtain the best shrinking.
• Available options: Boomerang roller conveyor, scrap-rewinder
• The machine works with PVC (BLUE FILM), polyolefin hot thermo-sealing and also shrinkable films (GREEN FILM –GOLDEN FILM)
• Machine made according to CE rules.

SPECIFICATIONS ESPERT 5040 EV

• Power supply: 240/400 V- 3 Ph + N
• Maximum power required: 5 KW
• Overall machine dimensions L x W x H: 2200 x 850 x 1500 mm
• Working plate height (on stand): 930 mm
• Tunnel entrance dimensions: 450 x 230 mm
• Tunnel length: 700 mm
• Machine weight: 270 kg
• Sealing area: 500 x 400 mm
• Maximum product height: 160 mm
• Impulse sealing system: Top blade
• Maximum roll width: 550 mm
• Compressed air consumption: 1 Nl/cycle
• Compressed air pressure: 6 bar
• Output: up to 900 pcs/h

notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
