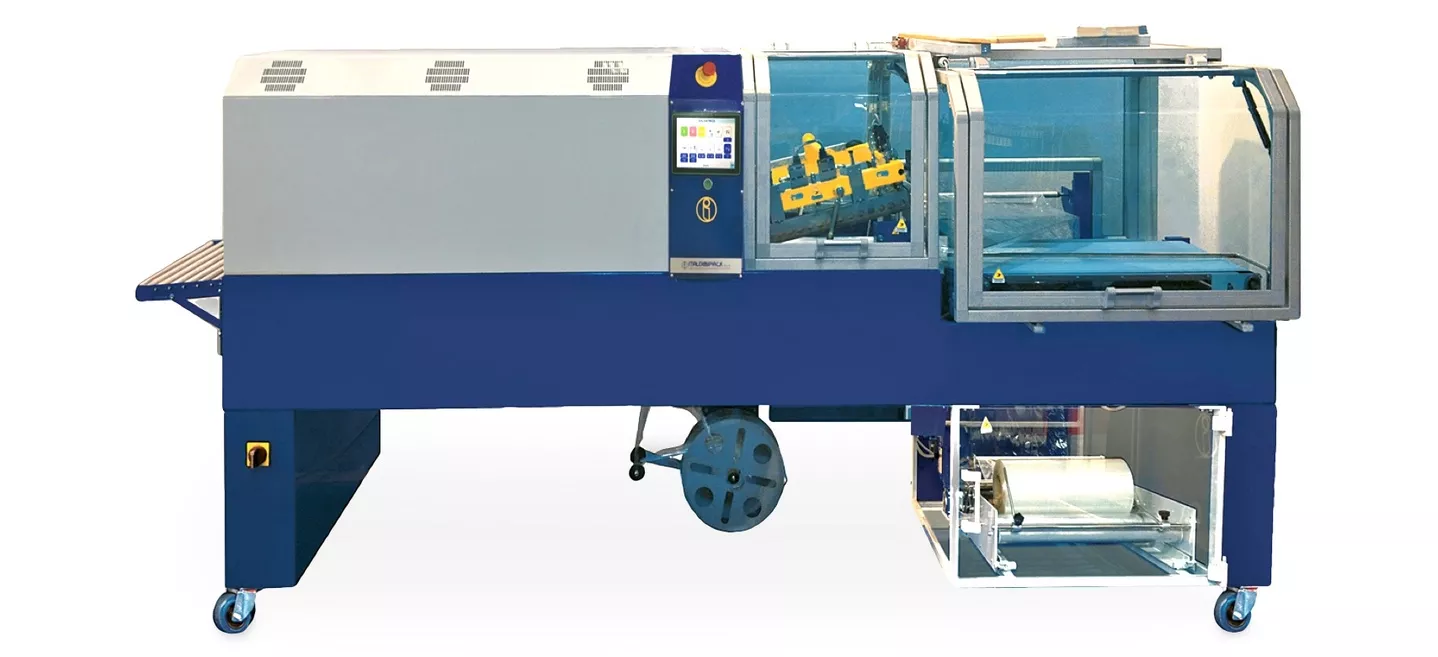

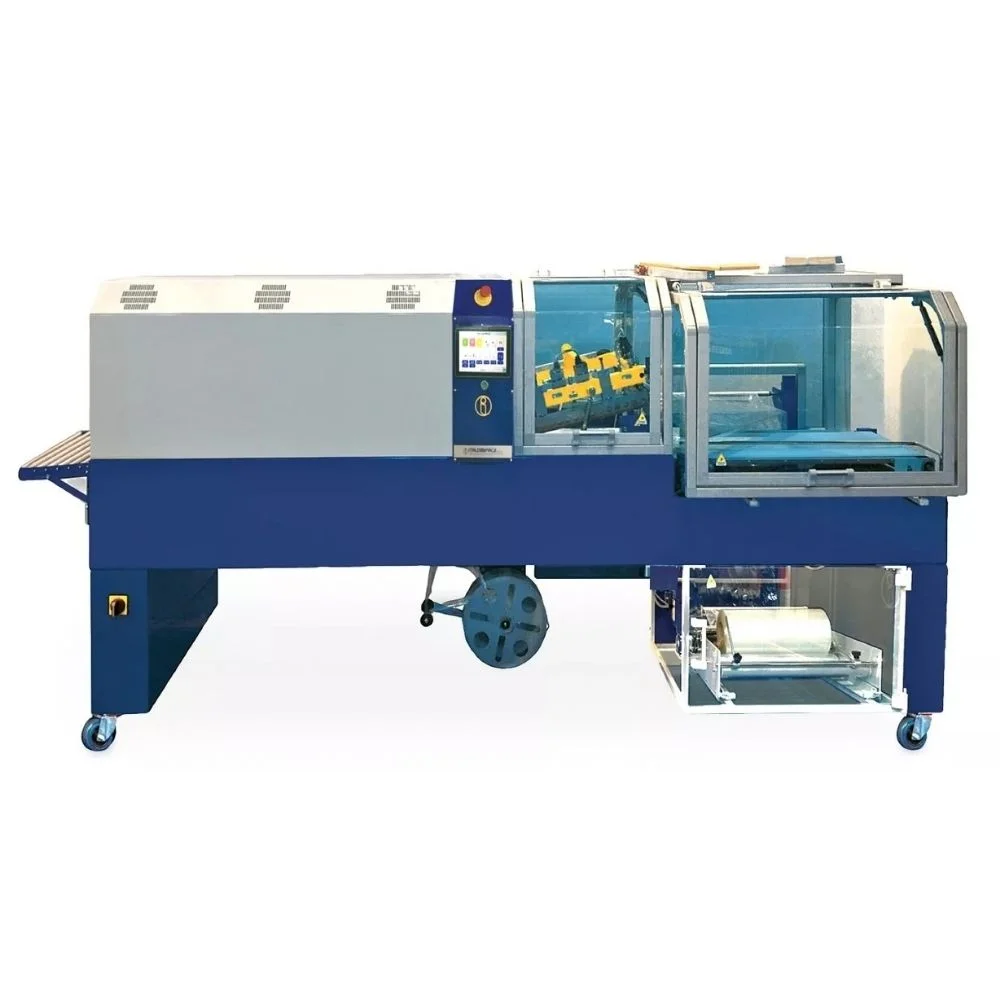

MECPACK FIVE STARS COMPACT
FULLY AUTOMATIC MONOBLOCK L-SEALER
Mecpack Five Stars Compact is the result of over 40 years’ Italdibipack Group experiences in manufacturing automatic l-sealers. Fully automatic monoblock L-sealer. Shrink tunnel designed for high productivity. Control of the all functions through PLC unit of last generation, with software developed by ID – Engineering.
Control panel with touch-screen.
Incredible performance – high tech construction. Modern design, ergonomic, exclusive.
Great manageability. Extremely reduced dimensions.
Best value for money.
Πληροφορίες Μηχανήματος
- Sealing controlled by a timer.
-
Separated electronic control for sealing-temperature and sealing-bars
-
Product length detected by photo-eyes with horizontal and vertical reading
-
Powered infeed/outfeed conveyor
-
Powered scrap-rewinding
-
Film-pulling by driven chains
-
“kissing” conveyors in order to pack product of small dimensions
-
Rolling-rods tunnel on request
-
Castors
-
Centerfolded polyolefin hot thermo-sealing and also shrinkable films (GREEN FILM – GOLDEN FILM)
Machine made according to CE rules
SPECIFICATIONS – MEC-PACK STX
- Power supply – 240- 380 V 3 Ph
- Power required – 1,5 KW
- Overall machine dimensions L x W x H – 1800 x 980 x 1450 mm
- Working plate height – 780 mm
- Machine weight – 420 kg
- Minimum sealing dimensions L x W – 90 x 90 mm
- Maximum sealing dimensions L x W – 550 x 450 mm
- Maximum product height – 150 mm
- Minimum film width – 200 mm
- Maximum film width – 550 mm
- Compressed air consumption – 0,5 Nl/cycle
- Compressed air pressure – 6 bar
- Output – Up to 1700 pcs/h
SPECIFICATIONS – TUNNEL 5525 1100 AX
- Power supply – 380 V 3 Ph
- Power required – 7 KW
- Overall machine dimensions L x W x H – 1400 x 850 x 1420 mm
- Working plate height – 780 mm
- Tunnel entrance dimensions W x H – 450 x 200 mm
- Tunnel lenght – 700 mm
- Machine weight – 260 kg
notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
