Κωδικός προϊόντος:
SKIN 5070-EV
THE BEST WAY TO PROMOTE YOUR PRODUCTS

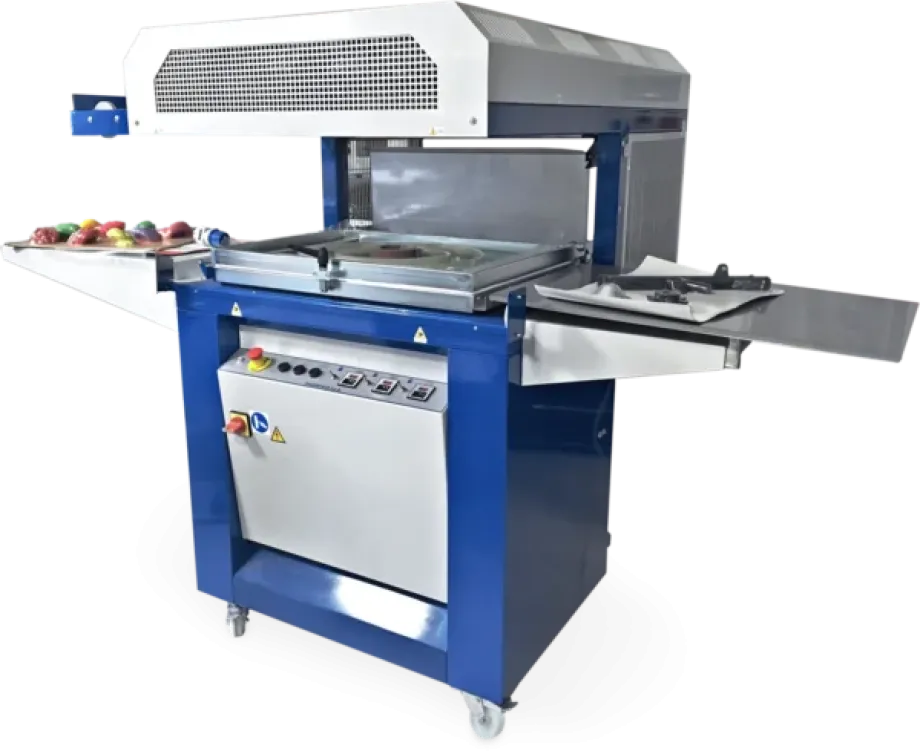

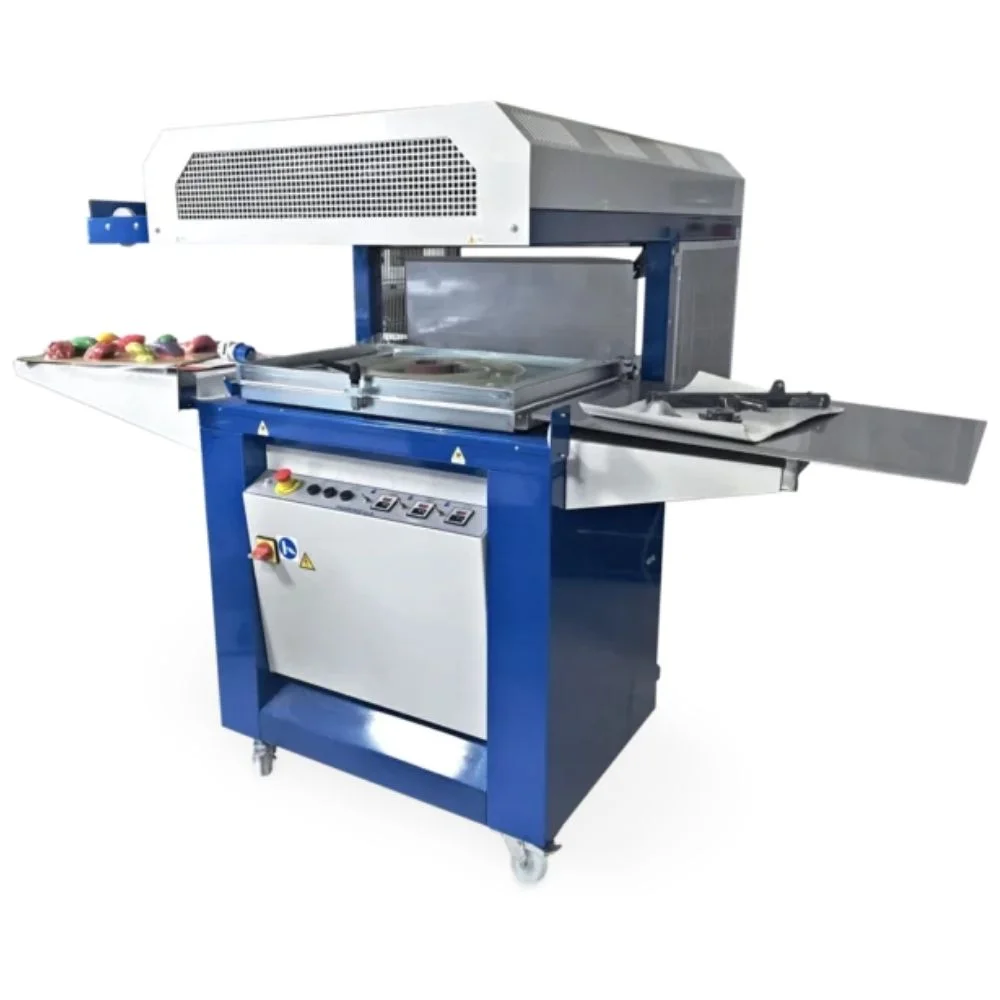

Print Email MAGIC-SKIN 5070 THE BEST WAY TO PROMOTE YOUR PRODUCTS Skin-wrapping means to join an object strongly to a cardboard through a plastic film. This one, heated and “softened“ by a radiating panel, will stick to the cardboard by means of a vacuum process and perfectly outline the shapes of the objects.
Πληροφορίες Μηχανήματος
The Magic-skin 5070 wrapper is a semiautomatic system (with automatic frame descent + vacuum connection/disconnection) and need only an operator to work.
- Easy and robust
- Low maintenance (periodical oil-change in the vacuum pump)
- Suitable for thermoforming
- Available Stand with wheels on request
The machine works with MOULDING PVC,POLYETHYLENE for SKIN, SURLYN, CARDBOARD SUITABLE FOR USED FILM Machine made according to CE rules.
SPECIFICATIONS – SKIN 5070-EV
- Power supply: 400 V – 3 Ph + G
- Power required: 7,8 KW
- Overall machine dimensions L x W x H: 2400 x 1300 x 1570 mm
- Working plate height: 1020 mm
- Weight: 305 Kg
- Max cardboard size: 495 x 695 mm
- Max product height: 150 mm
- Air consumption: 24 NI / cycle @ 6 bar
- Output: Two cycles/min
Notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
