Κωδικός προϊόντος:
DELTAREG AA200

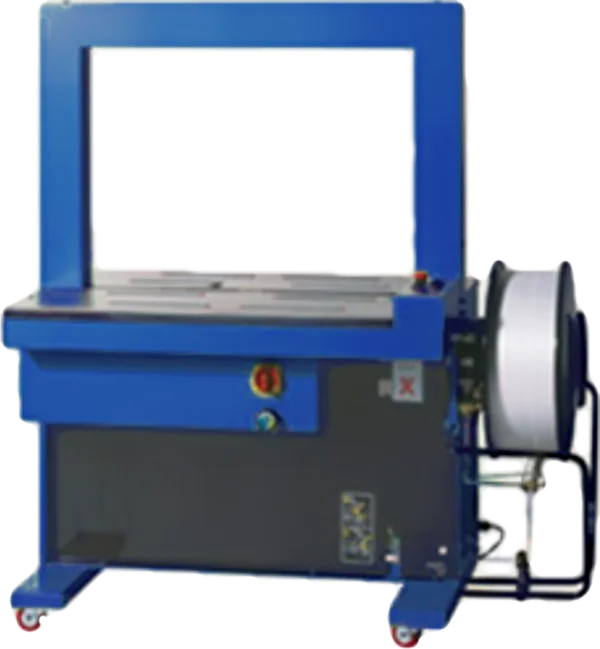

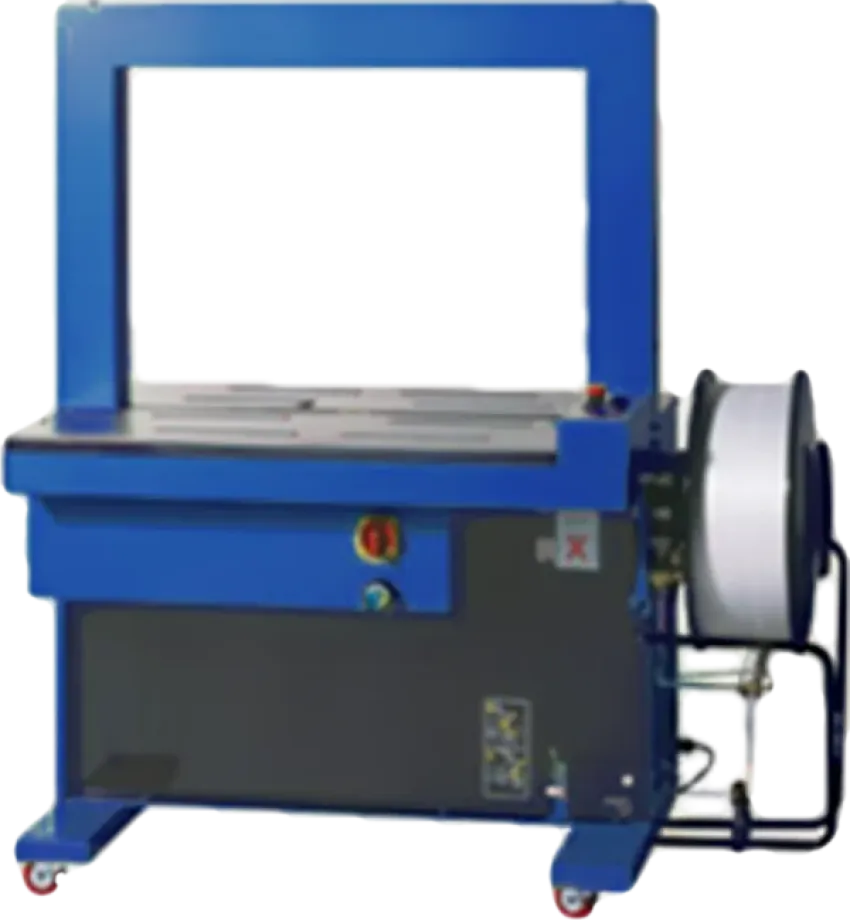

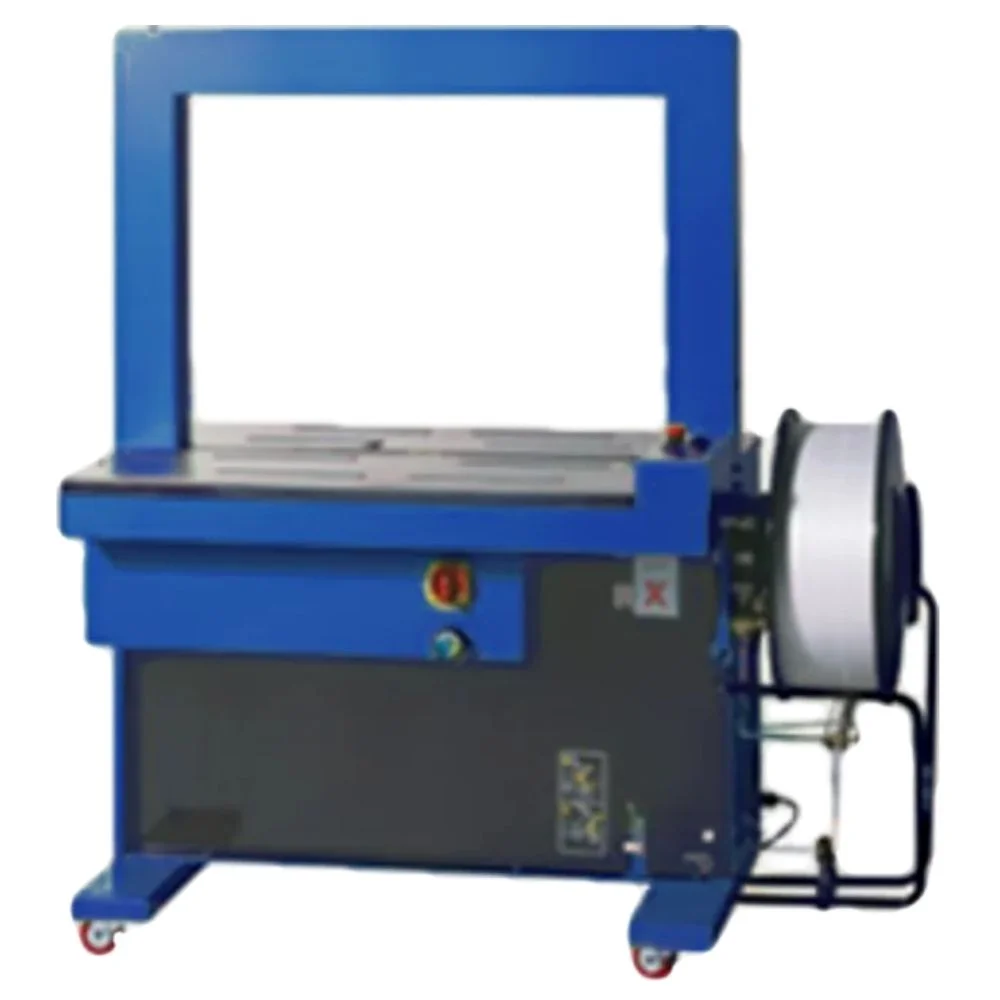

AUTOMATIC STRAPPING
Automatic strapping arch machine equipped with steel idler roller working-plate to make the product sliding easy, with automatic strapping operated by a pedal, button or ball on the working-plate.
Πληροφορίες Μηχανήματος
- Steel standard arch 850 x 600 mm customized on request
- Electronic Control Board
- Reset button included
- 24V electric control panel
- Control panel located on the operator-side
- Instant sealing through a warmed wire
- N° 3 power-off engines
- External adjustment of strap tension
- Machines are on wheels so they may be moved quickly from one task to another
- Options on request: double pedal, double press device for special applications, 380 V – 3 Ph voltage
- The machine works with PPL and PET strap or metallic strap.
Machine made according to CE rules.
SPECIFICATIONS DELTAREG AA200
- Power supply: 230 V – 1 Ph – 50 Hz
- Power required: 0,9 KW
- Overall machine dimensions: L x W x H1412 x 600 x 1540 mm
- Working-plate height: 810 mm
- Machine weight: 220 kg
- Strap tension: 7 ÷ 70 kg
- Strap width: 9 – 12 – 15 mm
- Internal roll diameter: 200 – 280 mm
- Minimum product dimensions W x H: 100 x 30 mm
- Output: 26 pcs/min
Notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
